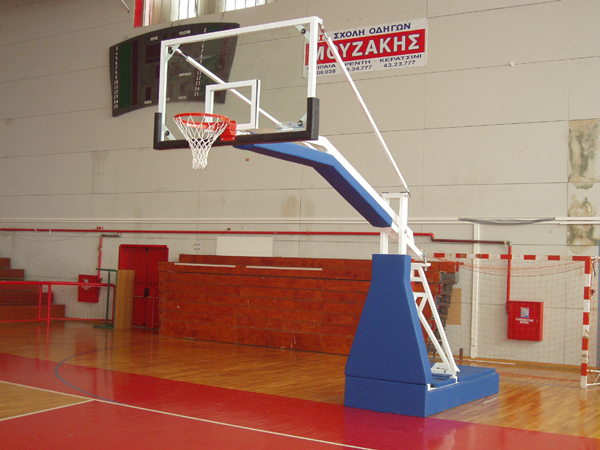

Mobile basketball system – BS00001

Portable Hydraulic basketball system overhang 3.25 m

The freestanding competition mobile baskets are retractable and the extension of 3.25 m allows the correct placement so that there is free space 2m from the main body to the sideline of the pitch (line thickness is 0.05 m) and the backboard is in a distance of 1.2 m. The backboard is measured 1.80×1.05 m and is made of a metal frame that has an elastic gasket which enables the secure fixation of the tempered safety glass. The basketball ring has an inside diameter of 450 mm and the height of the rim is 3.05 m from the ground. The bottom edge and the sides of the backboard are covered by protective padding molded from polyurethane. The base of the basket, the vertical part of the main body and the parts of the extension overhang are covered by protective padding in blue colour (which can change by client’s request) and it is also possible for club and sponsor logos to be printed on it. All the metal parts are powder coated in white colour, the ring is painted in deep orange and the tempered glass is transparent. The aforementioned are prerequisites of the “rules of the game” as defined for Level 1 sports events from FIBA. The hydraulic system is placed inside the base and has a control lever that allows the collapse and development of the system. When in full collapse the wheels descend and the base can be moved. This basketball system is ideal for installation in indoor sport halls for high level competitions.

Spare parts:

BS47433248: Basketball backboard (including reclining hoop, tempered safety glass and padding)

Β090322: Reclining basketball ring

B00043: Tempered safety glass 180x105x1.2 cm.

01-00203: Basketball ring net width 5 mm

01-00202: Basketball ring net width 6 mm

01-00201: Basketball ring net width 8 mm
